Search for the Bluetooth device "carplay" on your mobile phone. When you connect it for the first time, the mobile phone will pop up a prompt, please click to use or trust the device.

Before the phone is connected, click on Phone Link function of the device, change the automatic connection option under the corresponding phone type to mirror, then connect the phone data cable, and click the corresponding authorization on the phone end to connect.

There are Three Points about the Sound Problem:

1. Our device comes with a small speaker that can make sound, you can turn it off by setting

2. Transmit the sound to the original car radio through the
FM transmission function of the device (for example, select 86.3MHZ on the
device, and then play the U disk music, then search 86.3MHZ on the car radio)
3. Use the 3.5mmAUX cable to transmit the audio to the original carplayer through the AUX OUT interface of the machine (some models do not support this function, please see the interface description of the product for details)

Some connected Bluetooth devices will cause our device to fail to connect automatically. Please clear all paired Bluetooth devices
on the mobile phone, restart the Bluetooth of the mobile phone and the vehicle. Re-establish the Bluetooth connection.

Please use your mobile phone to search for Bluetooth of the machine, the name is "carplay"; Delete the devices that have been paired with but are not connected to the phone. Some Bluetooth devices that have been paired with each other may affect the phone's
Bluetooth ability to be paired with some devices or cause abnormal function.

Hold down the top of the screen with your finger and slide down. You can adjust the playing volume after pulling down the status
bar; When you return to the home screen during a call, you can adjust the call volume in the status bar.

Due to the extreme temperature's in the summer, in order to ensure safety, the machine does not have a battery. It cannot remember the time and date. After connecting your mobile phone, it will
automatically update the time and date.

Please use 8G or 16G storage card or USB flash drive. Some large-capacity storage devices may not support it. Format the storage device to ensure that the storage device's file system is the default value; Partially encoded video or music may not be recognized by the machine, please use common format media files.

Model: B5303

Type Portable Car: MP5

System: Allwinner melis system

Software Solution: F133

Radio Frequency: 88.60/89.20/89.50/89.80/91.50/91.80/93.00/93.60/93.90/94.50/95.10/95.70MHz

Radio Transmitter IC: AB53018

Amplifier IC: C$8571E

Output Power: Built-in 1W speaker

Voltage: 12-36V

Temperature: -10-60°C

BT Version: Version 5.0 (Default Name: CarPlay)

WIFI Frequency: 2.4G/5G Dual Frequency

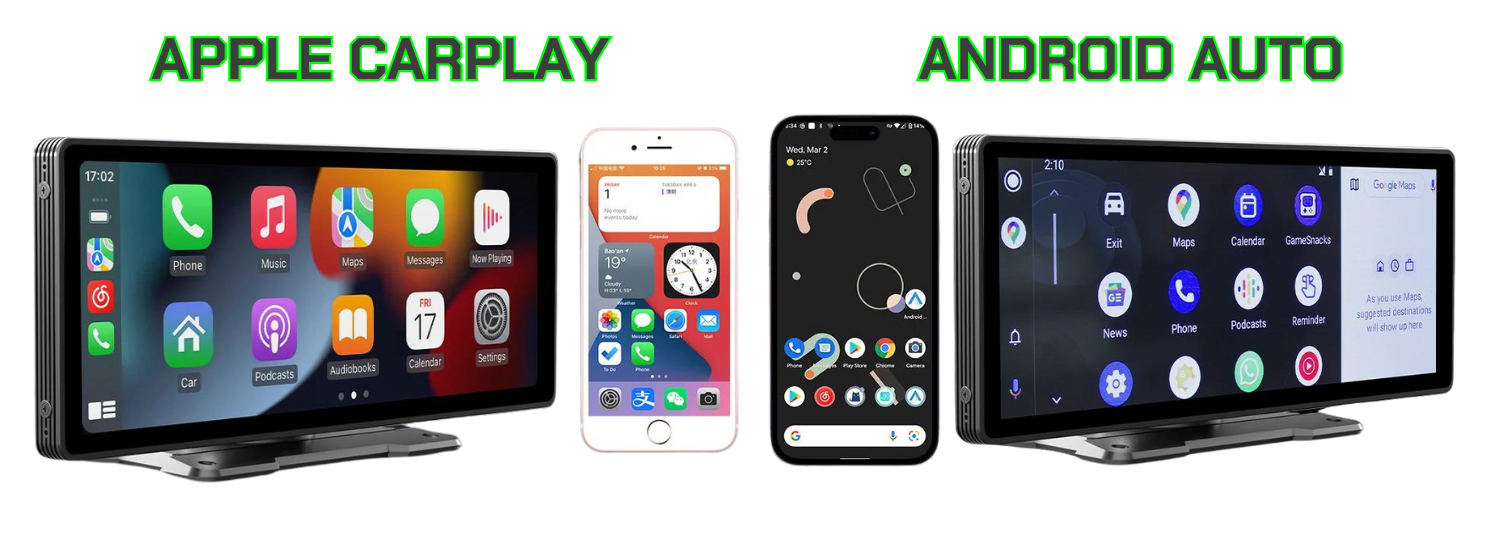

Mobile Internet: Mirrorlink (wired), CarPlay (wired/wireless) Android Auto (wired/wireless)

Running Memory: 1Gbit DRAM

Display Resolution: 1600x600

Screen Size: 10.26 inches HD (IPS)

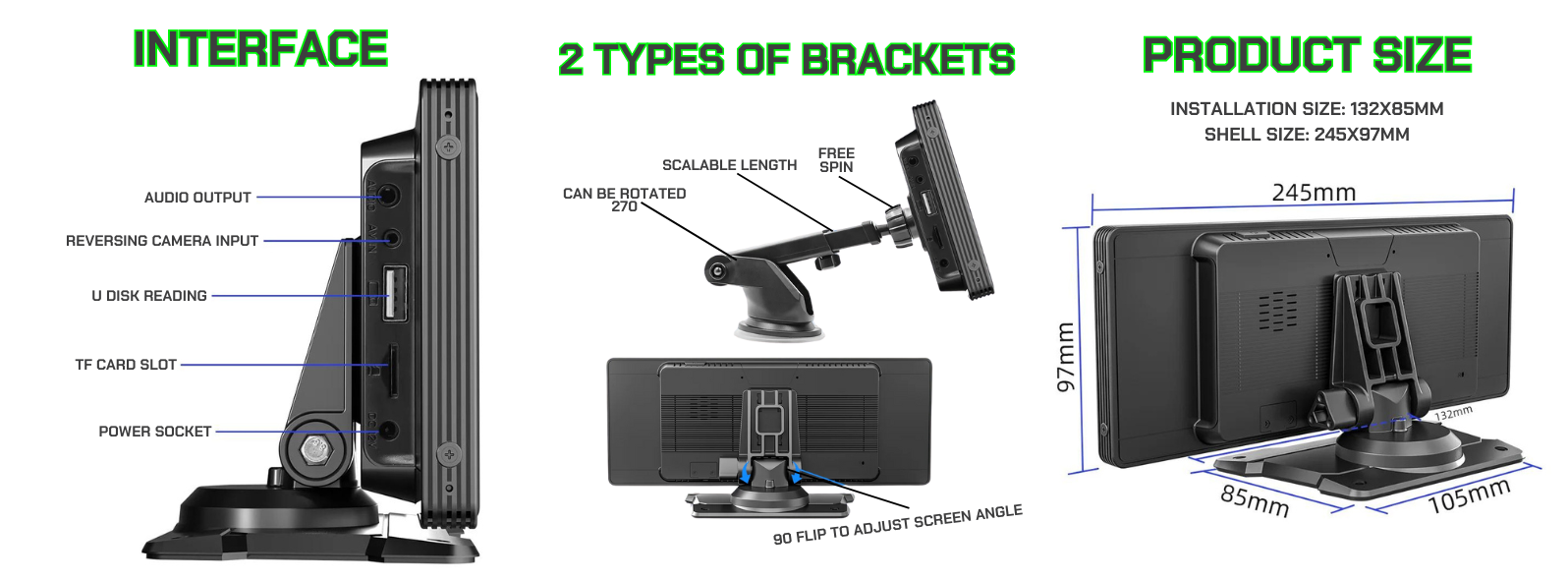

Installation Size: 132×85MM

Shell Size: 245×97MM

Host Depth: 25mm

Single Weight: 0.895KG

Mobile Internet: support

Reverse Image: support

Play Video Warning: support

Built-In Speaker: support

USB Interface: USB 2.0

TF Card: support

Audio Output: support

Reverse Video Input: support

Audio Format: MP3/AAC/APE/OGG/M4A/RA/WAV

Video Format: H263/H264/H265/DIVX HD/AVI/FLV/MKV/MPEG/MP4/MV9/VC/ASF/TS/QT

Image Format: JPEG/PNG/BMP/GIF/TIFF

Language: English, Chinese, Spanish, Portuguese, Russian, German, French, Polish, Turkish, Arabic, Hebrew Italian, Czech, Japanese, Korean, Thai

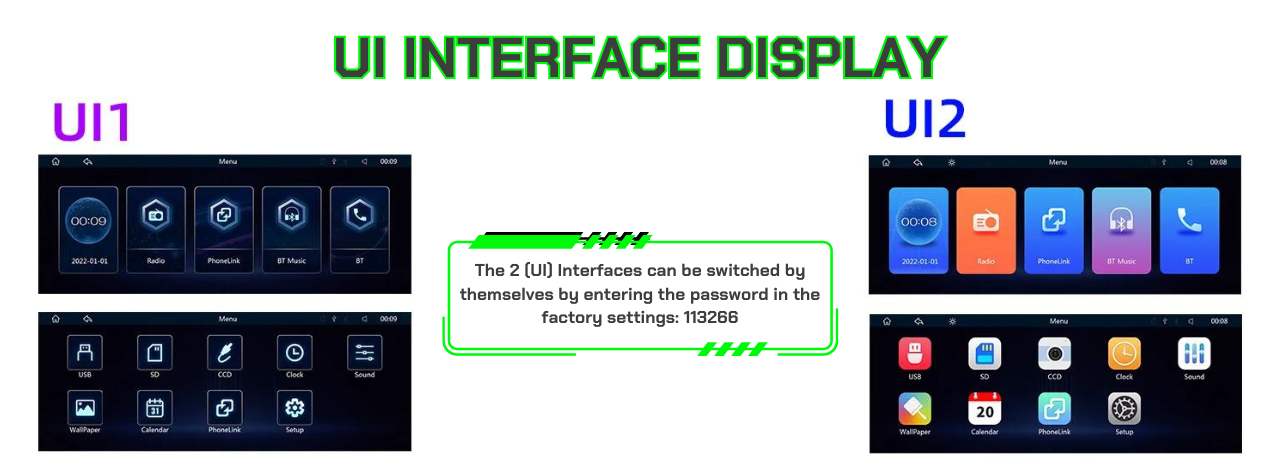

Factory Set Password: 113266
